Autofocus Camera with Liquid Lens

Pixelink has developed a family of USB 3.0 autofocus cameras that seamlessly integrate with liquid lenses providing you with cutting-edge solutions ideal for high-speed imaging applications.



Product Features:

  • One push, high-speed, point to point focus

  • Seamless integration with liquid lenses

  • Focus range of millimeters to infinity, in less than 20 ms

  • Easy integration with Pixelink SDK （optional）



Benefits:

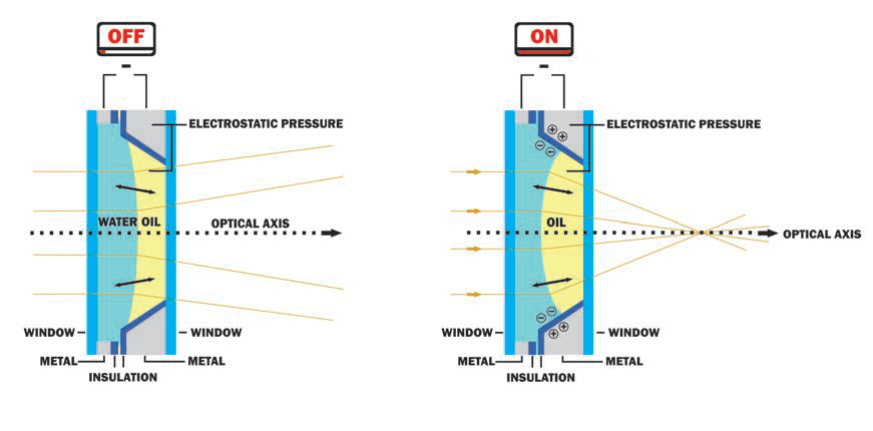

  • Large range of optical variation: Liquid interface allows for large phase shi variations

  • Sturdiness : Tested for over 100 million cycles with zero performance degradation

  • Shock resistance: Excellent output before and after shock tests

  • High-speed: Reconfigures in tens of milliseconds

  • Low power: Dissipates ~15mW, 10x lower than other systems

Cameras:

  • PL-D721CU/ PL-D721MU: 1280 X 1024, ON Semi Vita 1300, 1.3 MP, 151 fps, 1/2”

  • PL-D722CU / PL-D722MU: 1920X 1200, ON Semi Vita 2000, 2.3 MP, 87 fps, 2/3”

  • PL-D729MU: 3840 X 2484, ON Semi Mano 9600, 9.5 MP, 22 fps, 2/3”, 2.4 µm, 54dB, Rolling

  • PL-D732CU / PL-D732MU / PL-D732MU-NIR: 2048 X 2484, CMOSIS CMV 2000, 2.2 MP, 170 fps, 2/3”

  • PL-D753CU / PL-D753MU: 1936 X 1464, Sony IMX421, 2.8 MP, 141 fps, 2/3”

  • PL-D755CU / PL-D755MU: 2448 X 2048, Sony IMX250, 5.0 MP, 80f ps, 2/3”,

  • PL-D7715CU: 4608 X 3288, ON Semi MT9F002, 15 MP, 13 fps, 1/2.3”



Liquid Lenses:

Varioptic C-Mount Lens:

  • 16 mm, 1/3”- 2/3”, 110 mm - ∞

  • 25 mm, 1/3”- 2/3”, 120 mm - ∞

Edmund Optics Liquid Lens Cx Series Focal Length Lenses:

  • 12 mm, 1/2”, 40 mm - ∞

  • 16 mm, 1/2”, 65 mm - ∞

  • 25 mm, 2/3”, 125 mm - ∞

  • 35 mm, 2/3”, 200 mm - ∞
