25 GIGE CAMERAS
Speed is everything
BOLT SERIES
A testament to our name, Emergent Vision Technologies will become the first machine vision camera manufacturers in the world to produce machine vision area scan cameras powered by the latest 25 GigE interface. The maximum bandwidth available for 25GigE is 25Gbps or 3,125 Mbytes/s,and the usable bandwidth is around 24.5Gbps or 3,062 Mbytes/s.

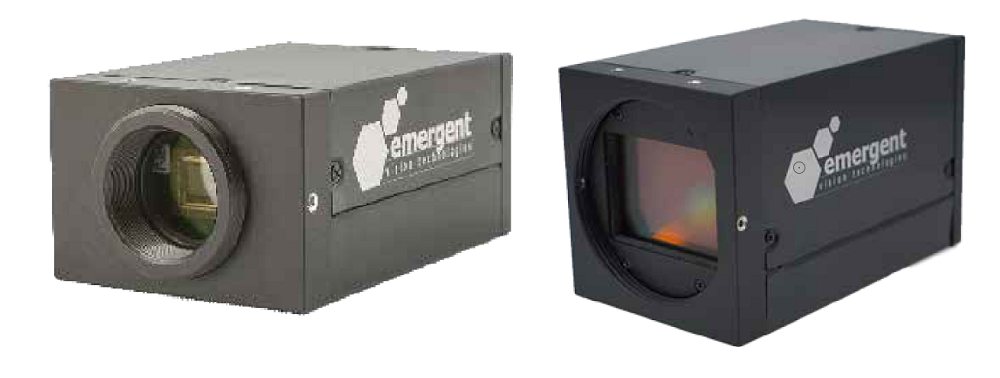

The EVT Bolt Series by Emergent Vision Technologies is the next standard in high speed, high definition imaging. This new line of cameras utilizes a 25 Gigabit interface. It works with machine vision applications and provides agile solutions to modern-day high-speed imaging needs of businesses.
Powered by the latest 25 GigE interface, the Bolt Series provides a 2.5x increase in data transmission speeds over its predecessor, 10 GigE and twenty-five-fold increase over the industry standard, the GigE Vision interface. 25 Gigabit Ethernet is a standard for Ethernet connectivity in datacenter environments, developed by IEEE802.3
An industry first, the 25 GigE Vision interface used on the EVT Bolt Series Cameras is the most technologically advanced communications protocol used in machine vision systems to date. It offers the highest data transmission speeds and can cater to imaging needs of very high-speed phenomena. This is particularly useful in applications where data transmission is of utmost importance and lossless image processing is required to preserve all details.
Product features:
High Speed 25GigE SFP28 interface
2.5x the Speed of 10GigE
Cable lengths from 1M to 10KM
No Fiber Converters Needed
No Frame Grabbers
GigE Vision Compliant
Products:
Model | Sensor | Resolution | Megapixels | Sensor Type | Max. frame rate | Cell Size | Shutter | Standard Mount | Dimensions(mm) |
HB-500-S | IMX426 | 812 × 620 | 0.50 MP | 1/1.7CMOS | 1594.7 fps | 9 µm×9 µm | Global shutter | C Mount | 97×58×40 |
HB-1800-S | IMX425 | 1604 × 1100 | 1.76 MP | 1.1CMOS | 662.1 fps | 9 µm×9 µm | Global shutter | C Mount | 97×58×40 |
HB-2000-S | IMX422 | 1624 × 1240 | 2.01 MP | 1/1.7CMOS | 477.6 fps | 4.5 µm×4.5 µm | Global shutter | C Mount | 97×58×40 |
HB-2800-S | IMX421 | 1936 × 1464 | 2.8 MP | 2/3CMOS | 409.2 fps | 4.5 µm×4.5 µm | Global shutter | C Mount | 97×58×40 |
HB-5000-G | GMAX2505 | 2600 × 2160 | 5.61 MP | 1/2CMOS | 290 fps | 2.5 µm×2.5 µm | Global shutter | C Mount | 97×58×40 |
HB-5000-SB | IMX537 | 2472 × 2064 | 5.1 MP | 1/1.8CMOS | 269 fps | 2.74 µm×2.74 µm | Global shutter | C Mount | 97×58×40 |
HB-7000-S | IMX420 | 3208 × 2200 | 7.06 MP | 1.1"CMOS | 207.1 fps | 4.5 µm×4.5 µm | Global shutter | C Mount | 97×58×40 |
HB-8000-SB | IMX536 | 2856 × 2848 | 8.1 MP | 2/3"CMOS | 201 fps | 2.74 µm×2.74 µm | Global shutter | C Mount | 97×58×40 |
HB-9000-G | GMAX2509 | 4200 × 2160 | 9.07 MP | 2/3"CMOS | 290 fps | 2.5 µm×2.5 µm | Global shutter | C Mount | 97×58×40 |
HB-12000 | CMV12000 | 4096 × 3072 | 12 MP | 28mm CMOS | 188 fps | 5.5 µm×5.5 µm | Global shutter | M42 | 97×58×50 |
HB-12000-SB | IMX535 | 4128 × 3008 | 12.4 MP | 1.11CMOS | 192 fps | 2.74 µm×2.74 µm | Global shutter | C Mount | 97×58×40 |
HB-16000-SB | IMX532 | 5320 × 3032 | 16.13 MP | 1.1CMOS | 145 fps | 2.74 µm×2.74 µm | Global shutter | C Mount | 97×58×40 |
HB-17000-S | IMX387 | 5456 × 3076 | 16.8 MP | 4/3 CMOS | 61 fps | 3.45 µm×3.45 µm | Global shutter | M52 | 97×58×60 |
HB-20000-S | IMX367 | 4416 × 4428 | 19.5 MP | 4/3 CMOS | 43 fps | 3.45 µm×3.45 µm | Global shutter | M52 | 97×58×60 |
HB-20000-SB | IMX531 | 4504 × 4504 | 20.28 MP | 1.1CMOS | 100 fps | 2.74 µm×2.74 µm | Global shutter | C Mount | 97×58×40 |
HB-25000-G | GMAX0505 | 5120 × 5120 | 26.21 MP | 1.1CMOS | 75 fps | 2.5 µm×2.5 µm | Global shutter | C Mount | 97×58×40 |
HB-25000-SB | IMX530 | 5320 × 4600 | 24.47 MP | 1.2CMOS | 98 fps | 2.74 µm×2.74 µm | Global shutter | C Mount | 97×58×40 |
HB-30000-S | IMX342 | 6464 × 4852 | 31.36 MP | APS-C(4:3)CMOS | 35.4 fps | 3.45 µm×3.45 µm | Global shutter | M52 | 97×58×60 |
HB-50000 | CMV50000 | 7920 × 6004 | 50 MP | 35mm CMOS | 30 fps | 4.6 µm×4.6 µm | Global shutter | M52 | 97×58×60 |
HB-65000-G | GMAX3265 | 9344 × 7000 | 65 MP | 35mm CMOS | 35 fps | 3.2 µm×3.2 µm | Global shutter | M52 | 97×58×60 |
